Ship test flights with a defensible
SORA risk assessment behind every sortie.
RA UAS Risk walks your team through the full SORA 10-step process, auto-sizes flight geography, computes GRC/ARC/SAIL, tracks OSO evidence and signs the campaign off as an immutable PDF — purpose-built for UAS flight-test operations.
- 10
- SORA steps
- 24+9
- OSOs incl. flight-test
- VI
- Up to SAIL
- 1
- Signed PDF artefact
FX10-NG Factory Acceptance Test (FAT) Operations (Testcopy)
- ConOps captured
- Intrinsic GRC: 3 (1m, controlled)
- ARC determination: ARC-b
- OSO evidence: 21/24 linked
- Sign-off pending Test Director

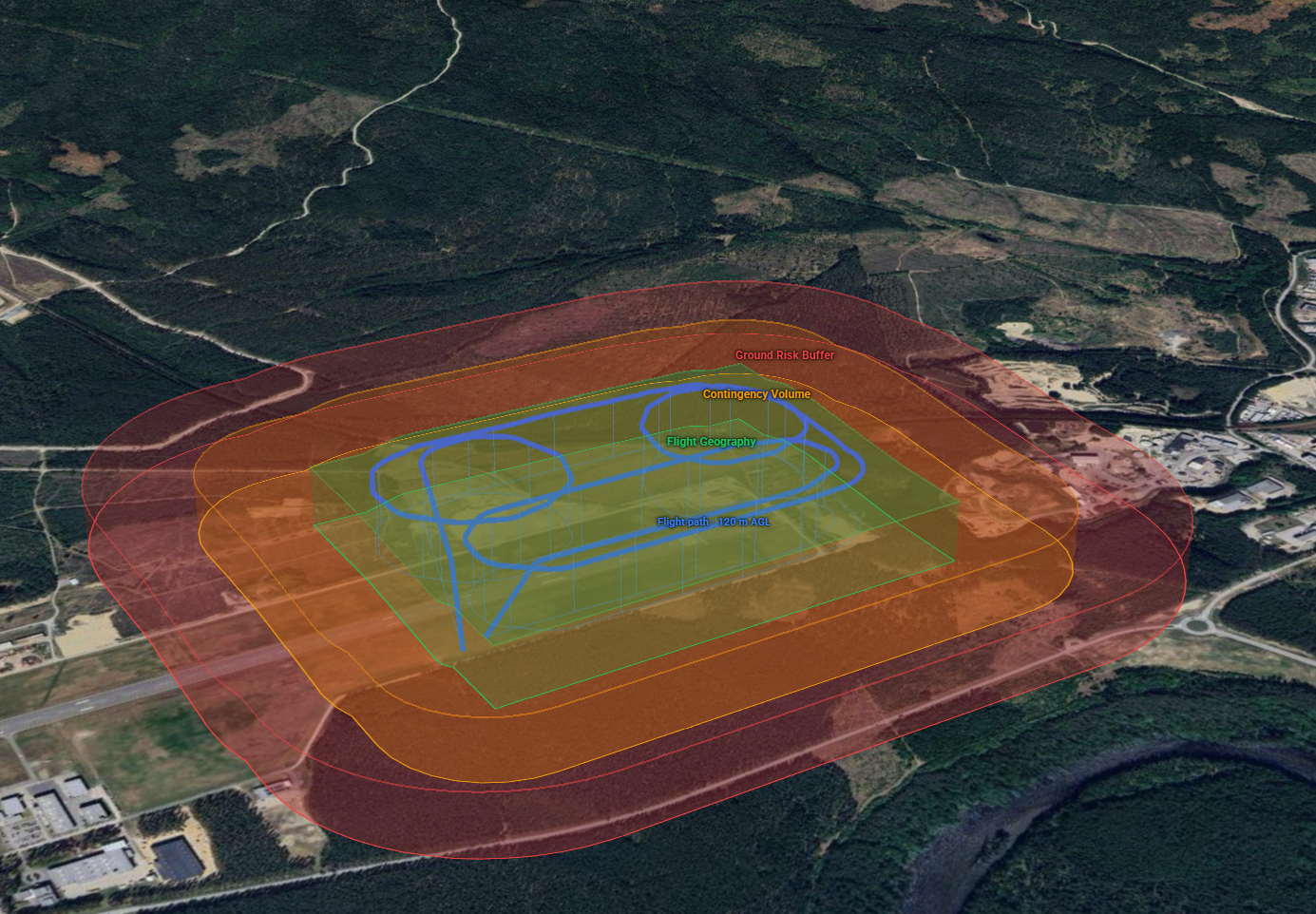

Flight Geography, Contingency Volume and Ground Risk Buffer — visualised
Draw the Flight Geography on a real satellite map and RA UAS Risk auto-buffers the CV and GRB to SORA v2.5. Switch to a tilted 3D view to inspect vertical separation at flight altitude before you ever take off.
- FG ⊂ CV ⊂ GRB nesting validated in real time
- Altitude-extruded volumes at your declared AGL
- Snapshots embedded straight into the signed PDF
- Multi-area campaigns with auto-merged buffers
From ConOps to signed PDF in one place
Every SORA step is a guided form mirroring the EASA Annex A template — no spreadsheets, no untraceable Word docs.
ConOps & Section 0
Operator, aircraft, site, intended ConOps and test-flight type (first flight, perf/HQ, BVLOS/DAA …) captured up front.
Zones on Google Maps
Draw FG on the map — CV and GRB buffers auto-compute. Toggle airspace layers, capture 2D / 3D snapshots straight into the report.
GRC · ARC · SAIL
Intrinsic GRC, mitigations M1/M2/M3, residual ARC and SAIL computed live against the SORA 2.5 tables.
OSO evidence rail
All 17 SORA 2.5 OSOs plus flight-test FT-OSOs side-by-side with your OM/DFTOM library and a live LLM compliance check per step.
Sign-off & review
Multi-role review chain, comments, share links, and locking. Once approved the artefact is immutable.
Immutable PDF artefact
Generates a signed SORA-T PDF including visual evidence (map snapshots), iGRC/SAIL tables and the full OSO matrix.
iGRC and SAIL, copied verbatim from SORA v2.5
No paraphrasing. The wizard renders the same matrices an EASA-trained safety auditor expects to see.
Table — Intrinsic GRC
| Max characteristic dim. → Operational scenario ↓ | < 1 m | < 3 m | < 8 m | > 8 m |
|---|---|---|---|---|
| VLOS · controlled ground area | 1 | 2 | 3 | 4 |
| VLOS · sparsely populated | 2 | 3 | 4 | 5 |
| BVLOS · controlled ground area | 2 | 3 | 4 | 5 |
| BVLOS · sparsely populated | 3 | 4 | 5 | 6 |
| VLOS · populated | 4 | 5 | 6 | 8 |
| BVLOS · populated | 5 | 6 | 8 | 10 |
| VLOS · gathering of people | 7 | 7 | 7 | 7 |
| BVLOS · gathering of people | 7 | 7 | 7 | 7 |
Table — SAIL determination
| Residual ARC → Final GRC ↓ | ARC-a | ARC-b | ARC-c | ARC-d |
|---|---|---|---|---|
| Final GRC 1 | I | II | IV | VI |
| Final GRC 2 | I | II | IV | VI |
| Final GRC 3 | II | II | IV | VI |
| Final GRC 4 | III | III | IV | VI |
| Final GRC 5 | IV | IV | IV | VI |
| Final GRC 6 | V | V | V | VI |
| Final GRC 7 | VI | VI | VI | VI |
Source: EASA SORA Main Body v2.5 · Tables reproduced verbatim in-app.
All 17 OSOs · plus flight-test FT-OSOs
Robustness levels per OSO follow SAIL. The wizard pre-fills the required level, you attach evidence from your OM / DFTOM library.
- L = Low · M = Medium · H = High robustness
- Evidence linked to live OM/DFTOM sections
- FT-OSOs auto-added per test-flight type (first-flight, BVLOS/DAA, payload …)
- LLM compliance check flags gaps before sign-off
OSO robustness vs. SAIL
| OSO (excerpt) | I | II | III | IV | V | VI |
|---|---|---|---|---|---|---|
| #05 · UAS designed to appropriate standards | O | L | M | H | H | H |
| #07 · Inspection of the UAS | L | L | M | M | H | H |
| #08 · Operational procedures defined | L | M | H | H | H | H |
| #09 · Remote crew trained & current | L | M | H | H | H | H |
| #16 · Multi-crew coordination | L | L | M | M | H | H |
| #23 · Environmental conditions assessed | L | L | M | M | H | H |
| FT-01 · Test card & abort criteria | L | M | H | H | H | H |
| FT-02 · Chase / observer for first flight | L | M | M | H | H | H |
Excerpt · the in-app matrix shows all 24 + flight-test OSOs.
Built for the way test teams actually work
Map editor with auto-buffers
- Draw FG with Google Maps Drawing Library
- CV (+50 m default) and GRB auto-generate
- Toggle restricted / danger area overlays
Fullscreen viewer + snapshots
- 2D and 3D tilted views
- Capture labelled snapshots into the report
- Up to 12 visual evidence images per assessment
Step-by-step Annex A wizard
- Field IDs match EASA Annex A verbatim
- Per-step explainers + linked SORA references
- LLM compliance check against OM / DFTOM
Contingencies (IF-cases) editor
- Trigger → immediate action → crew role
- Linked to specific OSOs and severity
- Rendered both in wizard and final PDF
Review, comments & share links
- Role-based review chain
- Read-only share links with expiry
- Full audit log per assessment
Signed SORA-T PDF
- Immutable artefact stored alongside zones & snapshots
- Re-renderable from preserved field IDs
- Clone to spin a new campaign from a baseline
Defensible test-flight risk, without the spreadsheet rodeo.
Sign in with your Robot Aviation OM credentials and open the workspace — the Eggemoen FX10-NG Factory Acceptance Test (FAT) Operations draft is waiting for you as a worked example.
